Horizontal Loop Reactor Axial Chemical Flow Pump
The Horizontal Loop Reactor Axial Chemical Flow Pump is engineered to deliver stable, large-volume circulation for polypropylene (PP), polyethylene (PE), LAO, and PAO production units. With more than a decade of continuous development, Haishi Pump has achieved full product coverage for 100,000–600,000 tons/year polyolefin loop reactors, becoming a trusted supplier in the global chemical and petrochemical market.
Product Overview

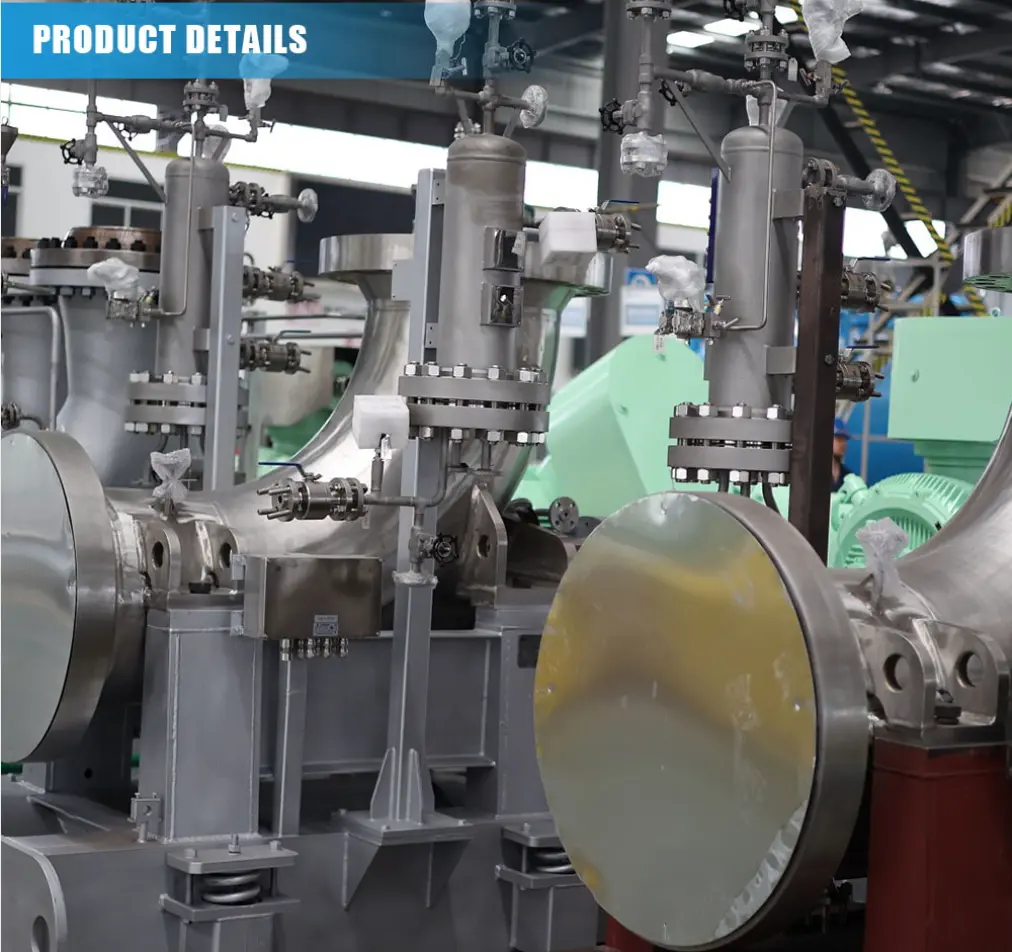

The horizontal loop reactor axial chemical flow pump-also known as an elbow pump or propeller pump-is designed for high-flow, low-head industrial applications.
Haishi provides a full series of axial flow pumps engineered for harsh operating environments, delivering excellent hydraulic performance and outstanding stability in polymerization slurry circulation.
The pump and motor are flexibly coupled and mounted on a common baseplate for smooth and reliable operation.
Key Features & Advantages
CFD-Optimized Hydraulics
Developed using Computational Fluid Dynamics (CFD), the hydraulic system achieves high efficiency, stable flow characteristics, and proven field performance.
Precision Hydraulic Modeling
The theoretical hydraulic model, supported by laboratory simulation, ensures optimized flow behavior that meets or exceeds customer process expectations.
Clean, Smooth Flow Path
A polished, smooth internal flow surface eliminates dead zones, prevents liquid residue, and allows easy cleaning-critical in polymer slurry handling.
High-Precision Alloy Impeller
The impeller is crafted from low-density forged alloy, machined on advanced multi-spindle machining centers for superior strength and dimensional accuracy.
Advanced Triple Mechanical Seal System
A unique triple mechanical seal structure dramatically improves shaft sealing reliability.
A built-in cooling system for internal bearings ensures steady operation under changing loads and temperatures.
Designed for Severe Operating Conditions
Suitable for high-flow, high-density, abrasive slurry, and chemical media commonly found in PP/PE/LAO/PAO loop reactor systems.
Technical Specifications
| Parameter | Specification |
|---|---|
| Medium | PP, PE, LAO, PAO |
| Head | Up to 70 m (229.6 ft) |
| Operating Temperature | Up to 200°C (392°F) |
| Pressure Rating | Up to 100 bar (1,454 PSIG) |
| Speed | Customizable |
| API Type Code | Optional / Customizable |
Applications
This horizontal loop reactor axial chemical flow pump is suitable for:
- 100,000–600,000 TPA PP Units (Polypropylene)
- Various PE Units (Polyethylene)
- HDPE Production Lines (High-Density Polyethylene)
- LAO Units (Linear Alpha-Olefin)
- Chemical Circulation in Polyolefin Reactors
- High-Flow, Low-Head Industrial Chemical Processes
AFH9500 – High-Pressure Axial Flow Pump for Polyolefin Reactors
The AFH9500 series is specially developed for polyolefin loop reactor circulation, significantly improving plant productivity. It is widely recognized as a preferred pump for global PP/PE manufacturing.
Hydraulic & Mechanical Advantages：
- Steep-head propeller design for excellent process control
- High-pressure elbow casing designed and tested per ASME VIII-1
- Standard triple mechanical seal + API Plan 32/53C/52 for enhanced safety and uptime
AFH9500 Specifications：
| Parameter | Specification |
|---|---|
| Flow Rate | 18,180 m³/h (80,000 gpm) |
| Head | 40 m (131 ft) |
| Pressure | 100 bar (1450 psi) |
| Temperature | –45°C to 349°C (–49°F to 660°F) |
Why Choose Haishi Horizontal Loop Reactor Axial Flow Pumps?
Haishi stands out as a leading developer of loop reactor axial flow pump technology, supported by more than a decade of continuous innovation and large-scale industrial validation. Our R&D journey began in 2010, focusing on the core components of loop reactor pumps. A major milestone was achieved in 2014, when Haishi signed a 100,000-TPA loop axial flow pump R&D contract with Sinopec Wuhan Branch.
In 2018, Haishi successfully completed a two-year industrial performance assessment for its first 100,000-TPA horizontal loop reactor axial flow pump, marking a breakthrough in domestically engineered high-performance polyolefin circulation systems.
Building on this success, Haishi expanded its product line to 200,000 TPA, 350,000 TPA, and ultimately to 600,000-TPA loop reactor axial flow pumps, fully supporting the needs of large and ultra-large polypropylene and polyethylene plants worldwide.
Today, Haishi has accumulated a complete engineering system covering design, manufacturing, inspection, testing, and field application, ensuring exceptional reliability, stable performance, and long service life under demanding chemical and polymerization conditions.
By choosing Haishi, you can benefit from:
- Proven large-capacity pump performance for 100k–600k TPA polyolefin units
- Industry-recognized engineering strength validated through major Sinopec projects
- Full-spectrum R&D and manufacturing capabilities
- Stable, efficient, and safe operation even in severe reactor slurry environments
- Long-term operational reliability backed by extensive industrial field data
Main product
workshop
exhibition
Certification certificate
Request a Quote
Looking to upgrade your PP/PE loop reactor circulation system?
Contact US now for technical consultation, drawings, and customized solutions for your polyolefin production line.
