Hey there! As a supplier of Horizontal Split Multistage Pump, I've seen firsthand how crucial it is to meet the Net Positive Suction Head (NPSH) requirement for these pumps. In this blog post, I'll share some practical tips on how to ensure your horizontal split multistage pump operates within the NPSH parameters, keeping it running smoothly and efficiently.
Understanding NPSH
Before we dive into the solutions, let's quickly go over what NPSH is. NPSH is the difference between the absolute pressure at the pump suction and the vapor pressure of the liquid being pumped. It's a measure of the pressure available at the pump inlet to prevent the liquid from vaporizing and causing cavitation. Cavitation can lead to reduced pump performance, increased noise and vibration, and even damage to the pump impeller and casing.
In simple terms, if the NPSH available (NPSHa) is less than the NPSH required (NPSHr) by the pump, cavitation can occur. So, our goal is to make sure NPSHa is always greater than NPSHr.
Factors Affecting NPSH
Several factors can influence the NPSH available at the pump suction. Here are some of the key ones:
Liquid Properties
- Vapor Pressure: The vapor pressure of the liquid depends on its temperature and composition. As the temperature of the liquid increases, its vapor pressure also rises, reducing the NPSHa. For example, hot water has a higher vapor pressure than cold water, so it requires more NPSH to prevent cavitation.
- Density: The density of the liquid affects the pressure head at the pump suction. Heavier liquids create more pressure head, which can increase the NPSHa.
Suction System Design
- Suction Pipe Diameter: A smaller suction pipe diameter can cause higher fluid velocities and increased friction losses, reducing the NPSHa. It's important to choose the right pipe diameter to minimize these losses.
- Suction Pipe Length: Longer suction pipes result in higher friction losses, which also reduce the NPSHa. Try to keep the suction pipe as short as possible.
- Elevation: The elevation of the liquid source relative to the pump suction can have a significant impact on the NPSHa. If the liquid source is below the pump, a negative suction head is created, which reduces the NPSHa. On the other hand, if the liquid source is above the pump, a positive suction head is created, increasing the NPSHa.
Pump Operation
- Flow Rate: The NPSHr of the pump increases with the flow rate. As the flow rate through the pump increases, the velocity of the liquid at the impeller inlet also increases, requiring more NPSH to prevent cavitation.
How to Meet the NPSH Requirement
Now that we understand the factors affecting NPSH, let's look at some practical steps to meet the NPSH requirement of a horizontal split multistage pump.
Optimize the Suction System
- Choose the Right Pipe Size: Select a suction pipe with a large enough diameter to minimize friction losses. A general rule of thumb is to keep the fluid velocity in the suction pipe between 2 and 4 feet per second.
- Minimize Pipe Length and Bends: Keep the suction pipe as short as possible and avoid unnecessary bends and fittings. Each bend and fitting adds to the friction losses, reducing the NPSHa.
- Install a Strainer or Filter: A strainer or filter in the suction line can prevent debris from entering the pump, but it can also cause additional pressure drop. Make sure to choose a strainer or filter with a low pressure drop and clean it regularly to maintain its efficiency.
Control the Liquid Temperature
- Cool the Liquid: If the liquid temperature is too high, consider cooling it before it enters the pump. This can reduce the vapor pressure of the liquid and increase the NPSHa. You can use a heat exchanger or other cooling methods to achieve this.
- Insulate the Suction Pipe: Insulating the suction pipe can help prevent heat transfer from the surrounding environment to the liquid, keeping the liquid temperature stable and reducing the risk of cavitation.
Adjust the Pump Operation
- Reduce the Flow Rate: If the NPSHa is marginal, reducing the flow rate through the pump can lower the NPSHr. You can do this by adjusting the pump speed or using a throttling valve in the discharge line. However, be careful not to reduce the flow rate too much, as it can affect the pump's performance and efficiency.
- Increase the Pump Inlet Pressure: If possible, increase the pressure at the pump inlet to increase the NPSHa. This can be done by raising the elevation of the liquid source or using a booster pump.
Select the Right Pump
- Choose a Pump with a Lower NPSHr: When selecting a horizontal split multistage pump, look for a pump with a lower NPSHr. Different pump models have different NPSHr requirements, so it's important to choose one that is suitable for your application.
- Consider a Multistage Pressure Pump: Multistage Pressure Pumps are designed to handle high-pressure applications and often have lower NPSHr requirements compared to single-stage pumps. They can be a good option if you need to meet strict NPSH requirements.
Monitoring and Maintenance
Once you've implemented these measures to meet the NPSH requirement, it's important to monitor the pump's performance regularly. Here are some things to keep an eye on:
- Cavitation Noise: Listen for any unusual noise or vibration from the pump, which could indicate cavitation. If you hear a rattling or hissing sound, it's a sign that cavitation may be occurring.
- Pump Performance: Monitor the pump's flow rate, pressure, and power consumption. A decrease in flow rate or an increase in power consumption could be a sign of cavitation or other problems.
- Suction Pressure: Measure the suction pressure at the pump inlet regularly to ensure the NPSHa is within the acceptable range.
Regular maintenance of the pump and suction system is also essential to keep them in good working condition. This includes cleaning the suction strainer, checking the pump seals and bearings, and lubricating the moving parts as needed.
Conclusion
Meeting the NPSH requirement of a horizontal split multistage pump is crucial for its reliable and efficient operation. By understanding the factors affecting NPSH and implementing the right strategies, you can prevent cavitation and extend the life of your pump.

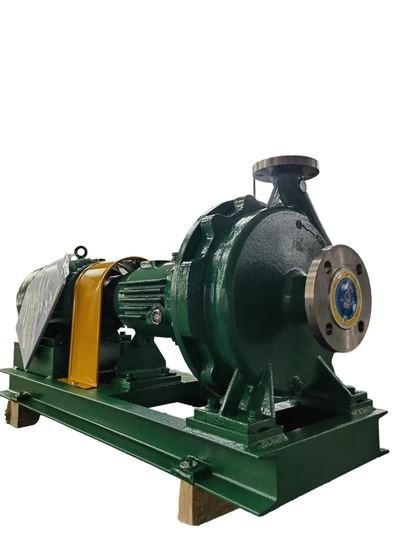

If you're in the market for a Horizontal Split Multistage Pump or need help with NPSH calculations and system design, don't hesitate to reach out. We're here to assist you with all your pump needs and ensure you get the best performance from your equipment. Whether you're dealing with industrial applications or need a pump for Industrial Sewage Multistage Pump systems, our team of experts can provide you with the right solutions. Let's work together to make your pumping system a success!
References
- "Centrifugal Pump Handbook" by Igor J. Karassik, Joseph P. Messina, Paul Cooper, and Charles C. Heald.
- "Pump Handbook" by Igor J. Karassik, Joseph P. Messina, Paul Cooper, and Charles C. Heald.
- Manufacturer's documentation and technical manuals for horizontal split multistage pumps.
