Basic Info.

Max.Head	<10m	Max.Capacity	>400 L/min
Driving Type	Motor	Impeller Number	Single-Stage Pump
Working Pressure	Low Pressure Pump	Influent Type of Impeller	Single Suction Pump
Position of Pump Shaft	Horizontal Pump	Pump Casing Combined	Horizontal Split Pumps
Mounting Height	Suction Centrifugal	Impeller	Open
Usage	Pump, Pumps, Circulating Pump	Standard	GB/T13008
Temperature	~200 Degree	Pressure	~0.6MPa
Head	1.5~7.0m	Rotation Speed	320/360/380/400/500/730/980
Capacity	3~2600m3/H	Transport Package	Plywood Box
Specification	1000.00cm * 2000.00cm * 1000.00cm	Trademark	haishi
Origin	Jiangsu, China	HS Code	8413709990
Production Capacity	5000

Products Description

What Is the Design Principle of a Horizontal Split Pump?

The Horizontal Split Pump is designed with a casing that is split horizontally along the shaft centerline. This configuration allows easy access to the internal components such as the impeller, shaft, and bearings, without disturbing the piping system or motor alignment.

Key Features of Horizontal Split Pump Design

Horizontal Split Casing: The casing is divided into an upper and lower half, making it easier to maintain and inspect the pump without removing the motor or pipe connections.
Double Suction Impeller (Optional): In many designs, a double suction impeller is used to balance the axial thrust and handle large flow capacities with minimal vibration.
Heavy-Duty Construction: Built for durability, with robust shafts and high-quality bearings located outside the fluid stream to extend operating life.
Efficient Hydraulic Performance: The design optimizes fluid flow, minimizing energy loss and ensuring high efficiency even in demanding applications.

Advantages of the Horizontal Split Pump

Easy and quick maintenance access
Long service life with balanced axial loads
High reliability in continuous and heavy-duty operations
Ideal for large-scale water, industrial, and firefighting applications

Thanks to its thoughtful design, the Horizontal Split Pump is widely used in municipal water systems, power plants, industrial cooling, and other sectors that require dependable and efficient fluid transfer solutions.

product-1060-795

Demonstration Of The Type	Range Of Application	Performance Parameter

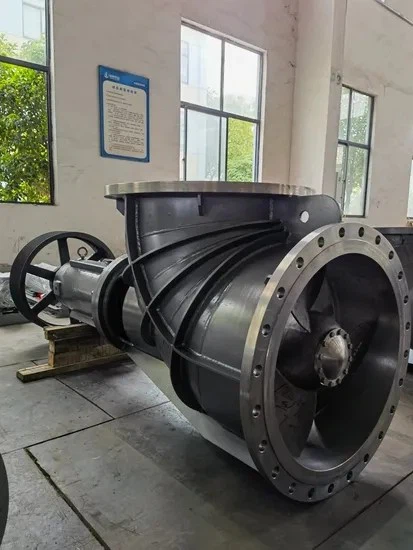

HZX-800 HZX(FJX): Series code 800: Nominal diameter of the impeller	For new energy, MVR device, ammonium phosphate, phosphoric acid, vacuum salt, Forced circulation of evaporators in alumina, caustic soda and other chemical industries, It can also be used as a circulating pump for crystallization and reactor. Can also be used in chemical, petrochemical, oil refinery, power plant, paper,Pulp and alkali, urban water supply and other industries. Suitable for conveying normal temperature or medium temperature neutral or corrosive, clean or containing particles of media.	Flow rate: ~50000m³/h Head: ~8m Speed: 380~980r/min Design pressure: ~ 1.6MPa Operating temperature: -20ºC~150ºC

1. Pump body 2. Impeller hub 3. Impeller blade

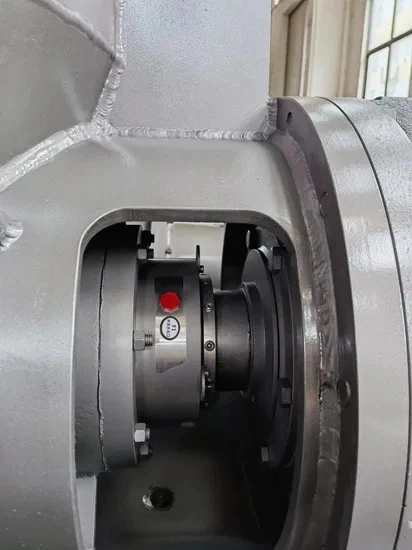

4. Protective sleeve 5. Shafting 6. Shaft seal
7. Non-drive end bearing 8. Bearing box
9. Oil pan 10. Drive end bearing
