Basic Info.
| Max.Head | <10m | Max.Capacity | >400 L/min |
| Driving Type | Motor | Impeller Number | Single-Stage Pump |
| Working Pressure | Low Pressure Pump | Influent Type of Impeller | Single Suction Pump |
| Position of Pump Shaft | Horizontal Pump | Pump Casing Combined | Horizontal Split Pumps |
| Mounting Height | Suction Centrifugal | Impeller | Open |
| Usage | Pump, Pumps, Circulating Pump | Standard | GB/T13008 |
| Temperature | ~200 Degree | Pressure | ~0.6MPa |
| Head | 1.5~7.0m | Rotation Speed | 320/360/380/400/500/730/980 |
| Capacity | 3~2600m3/H | Transport Package | Plywood Box |
| Specification | 1000.00cm * 2000.00cm * 1000.00cm | Trademark | haishi |
| Origin | Jiangsu, China | HS Code | 8413709990 |
| Production Capacity | 5000 |
Products Description
Where Can Chemical Dosing Oil Circulation Pumps Be Used?
Chemical Dosing Oil Circulation Pumps are essential in industries that require precise chemical injection and continuous fluid circulation. These pumps are designed to handle aggressive chemicals, oils, and additives with high accuracy and reliability.
Main Engineering Applications
- Oil Refining Plants: For injecting treatment chemicals into oil circuits to improve refining efficiency.
- Petrochemical Projects: For controlled dosing of catalysts and anti-corrosion agents.
- Water Treatment Facilities: For chemical dosing to adjust pH levels, disinfect, and manage scaling.
- Power Generation Plants: For adding chemicals into cooling and lubrication systems.
- Pharmaceutical Manufacturing: For precision chemical addition during production processes.
- Food and Beverage Factories: For controlled additive and preservative dosing in liquid processing lines.
Conclusion
With its versatility and precision, a Chemical Dosing Oil Circulation Pump is widely applied across industries that demand strict chemical handling and process control.
| Demonstration Of The Type | Range Of Application | Performance Parameter |
| HZX-800 HZX(FJX): Series code 800: Nominal diameter of the impeller | For new energy, MVR device, ammonium phosphate, phosphoric acid, vacuum salt, Forced circulation of evaporators in alumina, caustic soda and other chemical industries, It can also be used as a circulating pump for crystallization and reactor. Can also be used in chemical, petrochemical, oil refinery, power plant, paper,Pulp and alkali, urban water supply and other industries. Suitable for conveying normal temperature or medium temperature neutral or corrosive, clean or containing particles of media. |
Flow rate: ~50000m³/h Head: ~8m Speed: 380~980r/min Design pressure: ~ 1.6MPa Operating temperature: -20ºC~150ºC |

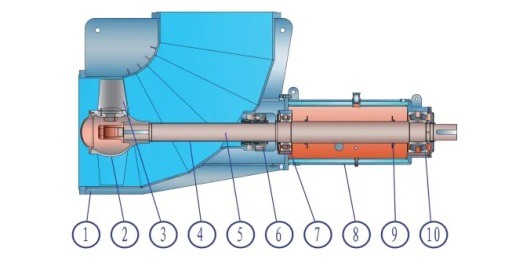

1. Pump body 2. Impeller hub 3. Impeller blade 4. Protective sleeve 5. Shafting6. Shaft seal 7. Non-drive end bearing 8. Bearing box 9. Oil pan 10. Drive end bearing
Company profile
We offer integrated solutions from embryo casting to complete machine with short lead time and controlled quality.
Main product
workshop
exhibition
Certification certificate
Cooperative brand
Packaging & Transportation
FAQ
Q: Can your pumps handle slurries with solid particles?
A: Yes, we offer models designed specifically for abrasive slurries with high solid content.
Q: Do you have food-grade chemical pumps?
A: Yes, we can supply sanitary pumps made from stainless steel for food and pharmaceutical applications.
Q: Can your pumps be powered by solar energy?
A: With the right controller and motor setup, yes, our pumps can run on solar power systems.
Q: How do you ensure pump stability under high temperature?
A: We use heat-resistant seals and reinforced bearings for stable operation at elevated temperatures.
Q: Do you offer low-noise pump models?
A: Yes, many of our centrifugal pumps are optimized for quiet operation in indoor environments.
Q: How quickly can you deliver pumps to Europe or North America?
A: Normally 7-15 working days depending on the model and shipping method.
Q: Can you ship with CE or ATEX certificates?
A: Yes, CE is standard for most models, and ATEX certification is available upon request.
