Basic Info.
| Model NO. | HXK | Materials | SS304, SS316, SS316L, Titanium, Monel, 2205, CD4mc |
| Max.Head | ~2000m | Manufacturer Level | Top Level |
| Max.Capacity | ~200m³/H | Shaft Sealing | Mechanical Seal and Packing |
| Driving Type | Motor | Pump Arrangement | Pipe Hung, Horizontal |
| Impeller Number | Single-Stage Pump | Pump Transmission | Direct Coupled, Gear Box, V-Belts, Universal Joint |
| Working Pressure | High Pressure Pump | Flange Standard | Customized |
| Influent Type of Impeller | Single Suction Pump | Transport Package | Standard Seaworthy Packing |
| Position of Pump Shaft | Horizontal Pump | Specification | 1000.00cm * 2000.00cm * 1000.00cm |
| Pump Casing Combined | Horizontal Split Pumps | Trademark | haishi |
| Mounting Height | Suction Centrifugal | Origin | Jiangsu, China |
| Impeller | Rotor | HS Code | 8413709990 |
| Usage | Pump, Pumps, Circulating Pump, Paper Making Pump | Production Capacity | 5000 |
Product Description
| Demonstration of the type | Range of application | Performance parameter |
| HXK300-S1 HXK: Series code 300: Drum code S1: Manifold code |
Power generation industry: cleaning pump, fuel pump, boiler feed pump Paper industry: high pressure spray, high pressure spray Petrochemical: process pump, hydrocarbon liquid transport, waste liquid transport Other industries: Other use of high-speed pumps, multistage pumps |
Flow rate: ~200m³/h Head: ~2000 m Speed: 2950~6800r/min Design pressure: ~30MPa Operating temperature: -20ºC~220ºC |

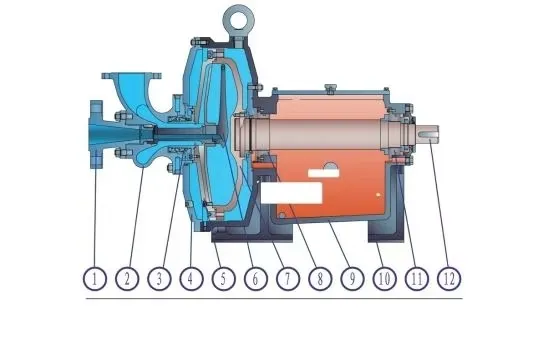

The rotating drum, rotor cover (impeller and liquid synchronous rotation, eliminating the general small flow, high lift centrifugal pumps such as high-speed pumps, multistage pumps of large disk friction loss, with much higher efficiency than high-speed pumps, multistage pumps.
At the same time, because the seal only withstand the inlet pressure, the sealing life is long; The bearing only bears a small axial force and radial force, and is not polluted by the leaking medium after the seal is damaged, and the bearing life is long.
The performance curve is a continuous rising curve from the maximum flow rate to the closing point, and the hydraulic performance is stable. Wearing parts are only mechanical seals and O-rings, fewer spare parts, low maintenance costs, versatility and interchangeability.
It has the characteristics of compact structure, high efficiency, long life, easy maintenance, etc. It is a high-tech product to replace high-speed pump and multistage pump.
WHY CHOOSE US?
5 DECADES
Established in 1977, long history of pump making brings us rich experience, making us a professional pump manufaturer and ranking us as a famous pump factory in China.
500+ STAFFS
Well trained and professional engineers and workers guarantees the in time delivery and offers professional pump solutions to our clients.
100000m2 WORKSHOPS
Large and modernized workshops and facilities enables the efficient and strict QA&QC procedures and therefore assures the qualified products.
20+ BRANCHES
Established 20+ branches offices and subsidiaries throughout China, they offer closer and in time services to our clients. And our overseas customers are from different places of the world.
3000+ CLIENTS
Own more than 3000 clients both in China and overseas, which is an approval of our product quality and a praise of our service.
20+ PATENTS
Gained more than 20 patents, which is a strong proof of the ability of R&D and a backup of product quality.
