Basic Info.
| Max.Head | <10m | Max.Capacity | >400 L/min |
| Driving Type | Motor | Impeller Number | Single-Stage Pump |
| Working Pressure | Low Pressure Pump | Influent Type of Impeller | Single Suction Pump |
| Position of Pump Shaft | Horizontal Pump | Pump Casing Combined | Horizontal Split Pumps |
| Mounting Height | Suction Centrifugal | Impeller | Open |
| Usage | Pump, Pumps, Circulating Pump | Standard | GB/T13008 |
| Temperature | ~200 Degree | Pressure | ~0.6MPa |
| Head | 1.5~7.0m | Rotation Speed | 320/360/380/400/500/730/980 |
| Capacity | 3~2600m3/H | Transport Package | Plywood Box |
| Specification | 1000.00cm * 2000.00cm * 1000.00cm | Trademark | haishi |
| Origin | Jiangsu, China | HS Code | 8413709990 |
| Production Capacity | 5000 | ||
Products Description

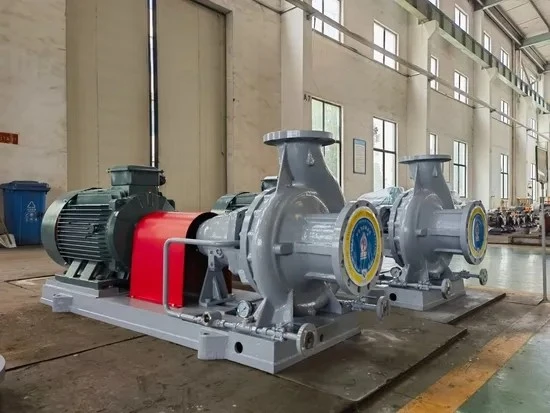

Understanding the Single Suction Centrifugal Pump
The Single Suction Centrifugal Pump is a widely used pump type in industrial and commercial systems. It features a design where liquid enters the impeller from one side only, allowing for a more compact and cost-effective setup.
Key Features
- Fluid enters from a single impeller eye
- Simpler construction compared to double suction models
- Cost-effective and space-saving
- Ideal for moderate flow and head applications
Typical Applications
These pumps are commonly used in water treatment, HVAC systems, fire fighting, irrigation, and chemical process industries. They are suitable where flow rates are not extremely high, and space or budget is a concern.
Advantages
- Compact horizontal installation
- Lower maintenance requirements
- Efficient for light to medium-duty systems
The Single Suction Centrifugal Pump is an ideal solution for systems needing reliable performance with simple operation. Its single entry point design ensures easy maintenance and consistent flow delivery.
| Demonstration Of The Type | Range Of Application | Performance Parameter |
| HZX-800 HZX(FJX): Series code 800: Nominal diameter of the impeller | For new energy, MVR device, ammonium phosphate, phosphoric acid, vacuum salt, Forced circulation of evaporators in alumina, caustic soda and other chemical industries, It can also be used as a circulating pump for crystallization and reactor. Can also be used in chemical, petrochemical, oil refinery, power plant, paper,Pulp and alkali, urban water supply and other industries. Suitable for conveying normal temperature or medium temperature neutral or corrosive, clean or containing particles of media. |
Flow rate: ~50000m³/h Head: ~8m Speed: 380~980r/min Design pressure: ~ 1.6MPa Operating temperature: -20ºC~150ºC |
1. Pump body 2. Impeller hub 3. Impeller blade 4. Protective sleeve 5. Shafting6. Shaft seal 7. Non-drive end bearing 8. Bearing box 9. Oil pan 10. Drive end bearing
Company profile
We offer integrated solutions from embryo casting to complete machine with short lead time and controlled quality.
Main product
workshop
exhibition
Certification certificate
Cooperative brand
Packaging & Transportation
FAQ
Q: Do you have pumps suitable for solvent transfer?
A: Yes, we offer models compatible with various organic solvents.
Q: Can your pumps be used in pharmaceutical factories?
A: Yes, we have GMP-compliant pumps for pharmaceutical applications.
Q: What's the maximum temperature your pumps can handle?
A: Some models can operate up to 350°C with the right materials.
Q: What's the maximum flow rate your pumps can provide?
A: We have models ranging from a few liters per minute to over 5000 m³/h.
Q: Can I install your pumps in outdoor environments?
A: Yes, we offer weatherproof and IP-rated pump options.
Q: What is the typical pressure range of your chemical pumps?
A: Pressure ranges from low (below 2 bar) to high (up to 150 bar) depending on the model.
